PILOT ASSEMBLY EQUIPMENT FOR POUCH CELL MANUFACTURING
Single station process machines for lithium pouch cells production. A kit of machines to build lithium ion pouch cells, from electrode cutting and cell stacking toward final cell filling and degassing.
DRY ROOM
-
Electrode cutting Unit (ECU)
View ProductELECTRODE CUTTING UNIT (ECU)
Digatron Systems ECU, Electrode Cutting Unit, is an automatic electrode die cutting equipment designed to punch electrodes from coated aluminium and copper rolls. A roll of...
-
Z-Fold Stacking Unit (ZSU)
View ProductZ-FOLD STACKING UNIT (ZSU)
Digatron Systems ZSU, Z-Fold Stacking Unit, is an automatic electrode stacking and separator folding machine, designed for the production of lithium cells. The operator manua...
-
Sheet Stacking Unit (SSU)
View ProductSHEET STACKING UNIT
Digatron Systems SSU, Sheet Stacking Unit, is an automatic cell stacking machine, designed for the production of lithium cells. The operator manually loads the machine with one anod...
-
Tab Welding Unit (TWU)
View ProductTAB WELDING UNIT (TWU)
Digatron Systems TWU, Tab Welding Unit, is an automatic electrode tab ultrasonic welding machine, designed for the production of lithium cells. It is designed to trim the current...
-
Pouch Forming Unit (PFU)
View ProductPOUCH FORMING UNIT (PFU)
Digatron Systems PFU, Pouch Forming Unit, is an automatic blister pouch forming machine, designed for the production of lithium cells. Pouch film unwinding, forming and cutting...
-
Pouch Sealing Unit (PSU)
View ProductPOUCH SEALING UNIT (PSU)
Digatron Systems PSU, Pouch Sealing Unit, is an automatic pouch cell heat-sealing machine designed for the production of lithium cells. The machine is designed to heat-seal the...
-

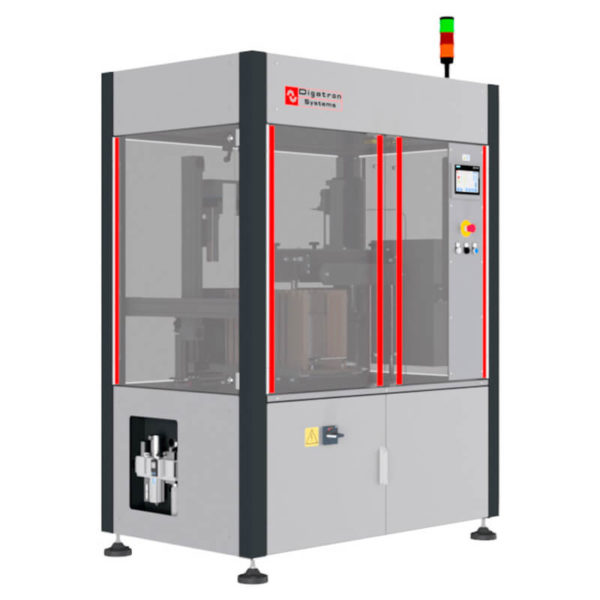

Cell Filling Unit (CFU)
View ProductCELL FILLING UNIT (CFU)
Digatron Systems CFU, Cell Filling Unit, is an automatic pouch cell filling machine, designed for the production of lithium cells. The machine is designed to fill pouch type o...
-
CELL FILLING UNIT (CFU-EX)
View ProductCELL FILLING UNIT (CFU-EX)
Digatron Systems CFU-EX, Cell Filling Unit, is an automatic pouch cell filling machine, designed to work externally from a dry room. The machine is designed to perform elec...
CLEAN ROOM
-
Lab Formation Unit (LFU)
View ProductLAB FORMATION UNIT (LFU)
Digatron Systems LFU, Lab Formation Unit, is an automatic pouch cell formation equipment , designed for the production of lithium cells.
Powered by our latest design of r... -
Cell Degassing Unit (CDU)
View ProductCELL DEGASSING UNIT
Digatron Systems CDU, Cell Degassing Unit, is an automatic pouch cell degassing machine, designed for the production of lithium cells. The machine is designed to evacuate the gas fr...
-
Ageing Unit (AVU)
View ProductAGEING UNIT
Digatron Systems AVU, Cell Ageing Unit, is an automatic pouch cell ageing equipment, designed for the production of lithium cells. The machine is designed to store lithium cells at controll...
-
AXIAL TAB POUCH CELL CARTRIDGE TRP 024-010
View ProductAXIAL TAB POUCH CELL CARTRIDGE TRP 024-010
This cartridge is designed to connect up to 24 pouch cells, with both tabs located on the same side of the cell, to perform formation or test.
Cell cont... -
OPPOSITE TAB POUCH CELL CARTRIDGE TRP 024-011
View ProductOPPOSITE TAB POUCH CELL CARTRIDGE TRP 024-011
This cartridge is designed to connect up to 24 pouch cells, with tabs located on the opposite sides of the cell, to perform formation or test.
Cell c... -
CYLINDRICAL CELL CARTRIDGE TRC 012-010
View ProductCYLINDRICAL CELL CARTRIDGE TRC 012-010
This cartridge is designed to connect up to 12 cylindrical cells to perform formation or test.
The contacting system is composed of spring-loaded pins for c... -
CYLINDRICAL CELL CARTRIDGE TRC 024-010
View ProductCYLINDRICAL CELL CARTRIDGE TRC 024-010
This cartridge is designed to connect up to 24 cylindrical cells to perform formation or test.
The contacting system is composed of spring-loaded pins for c...
